移动式高压细水雾灭火系统
发布时间:2020-06-17
浏览次数:233

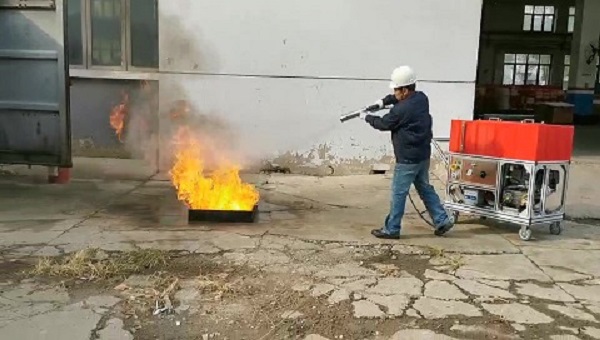

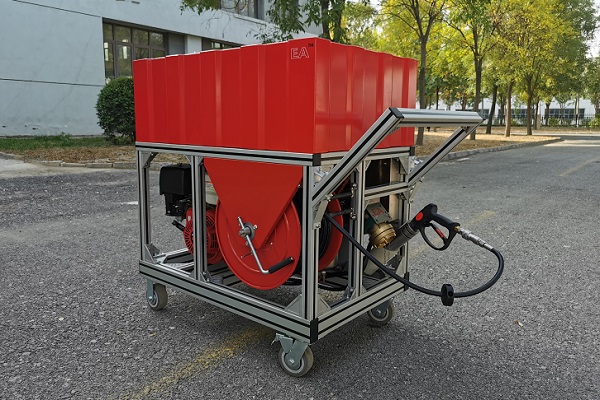

意安消防移动式高压细水雾灭火系统 EA-Mobile MIST™
EA-Mobile MIST™ High Pressure Water Mist System Module


     防火是社会安全的关键措施,  意安公司采用全球先进的意大利高压细水雾技术,提供样式多种的喷雾方式,包括特殊设计的喷头,连接,材料和控制系统。意安公司具有数十年的消防技术积累,包括海运、飞机和重型设备行业的产品等,重要的OEM公司客户定期向我们定制高端灭火产品。 意安公司研发的细水雾灭火系统具有核心技术,优化的喷嘴技术通过提高喷雾覆盖率,液滴大小分布控制,喷嘴布置和角度,以及总的液体流量提供了优秀的细水雾灭火解决方案
    Fire protection is a critical application for social security. EA fire fighting company uses the world's advanced high pressure mist technology from Italy, to provide a variety of spray styles, including specially designed nozzles, connections, materials and control systems. EA has decades of fire technology accumulation, including applications on shipping, aircraft and heavy equipment industries, and important OEM customers regularly customize high quality fire extinguishing products. The high pressure water mist fire extinguishing system developed by EA  has the core technology. The optimized nozzle technology provides good water mist fire extinguishing solution by increasing the spray coverage, controlling the size distribution of the droplets, the nozzle layout and angle, and the total liquid flow.


EA-Mobile MIST™ 系统特点

EA-Mobile MIST™  System characteristics

模块化设计
Modular design
意安EA移动式高压细水雾系统采用模块化设计,应用灵活,可以满足不同客户多种用途的需求
EA mobile high-pressure water mist system adopts modular design and flexible application to meet different needs of customers.

意大利Stopflex高压软管防崩脱系统  安全保障CE认证
Italy Stopflex retention system:Safety guarantee  CE Certification

符合欧洲DIN 工业标准  DIN EN856 DIN 2353标准, CE安全指令
Under regulations of DIN industrial standard,according to DIN EN856, DIN2353, CE directive



EA-Mobile MIST™ 技术参数表
EA-Mobile MIST™ General datasheet

尺寸(接受客户定制): 1000 x 860 x 900mm (长x宽x高)
Dimensions (Accept customer customization) : 1.000 × 860 × 900 mm (L × W × H)
重量 (空载): 250kg
Unit weight empty (approx.):  250 kg
重量 (水箱满载): 400kg
Unit weight operational (approx.): 400 kg
系统工作压力: 50Bar-120Bar
System working Pressure:  50Bar-120Bar (725 p.s.i.-1,740p.s.i)
测试压力: 150Bar
Testing pressure:  150Bar (2,175 p.s.i.)
环境工作温度: 0 - 50°C
Working temperature: 0 - 50°C
柱塞泵流量: 40升/分钟
Pump capacity:  40 liters/minute
汽油机功率: 本田11KW
Gasoline engine: HONDA 11KW
电机功率(可选项):11KW
Motor (option:electric driven): SIEMENS 11kW (400V / 3ph/50Hz)
启动方式(汽油机): 电启动或反冲绳启动
Startup mode(Gasoline engine): Electric start or pull rope start

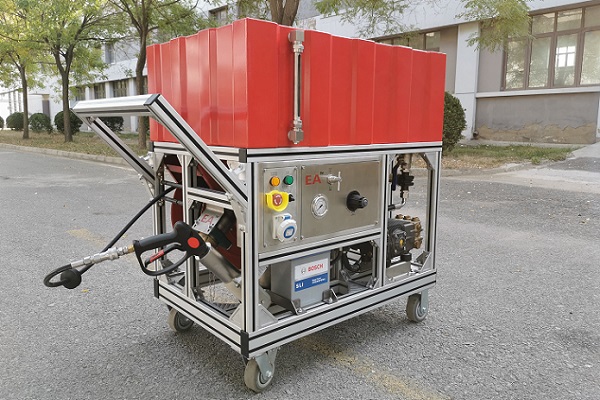

控制系统
Control system

水位报警及水位指示
Water level alarm and water level indication
电源指示及启动开关
Power indicator and start swith
紧急停止按钮
Emergency stop button
软管卷盘电动回收控制装置 (可选项)
Power rewind hose reel control system(option)


水箱
Water tank

水箱容积: 160 升 (接受客户定制)
Capacity of water tank: 160L(Accept customer customization)
高低水位传感器和液位计
High and low water level sensor and liquid level meter
进水接口: DN 65消防水带接口
Water intake: DN65 connector of fire hose
材 质:304不锈钢
Material:  304 stainless steel



高压软管及卷盘

High-pressure hose and hose reel

软管爆破压力:400 Bar (5800 p.s.i.)
Hose blasting pressure: 400 Bar (5800 p.s.i.)
卷盘单元尺寸: 500 x 400 x 600mm (长x宽x高 mm)
Dimensions of hose reel unit :  500 x 400 x 600mm  (L × W × H)
高压软管长度: 40M  (客户定制: 10M-60M)
Length of high-pressure hose: 40M  (Customized: 10M-60M)


应用行业
Application



消防站   Mini fire station                                        博物馆     Museum




烟草  Tobacco                                              文物古建筑   Historical buildings
