细水雾喷枪EA MIST GunJet
发布时间:2020-06-17
浏览次数:169

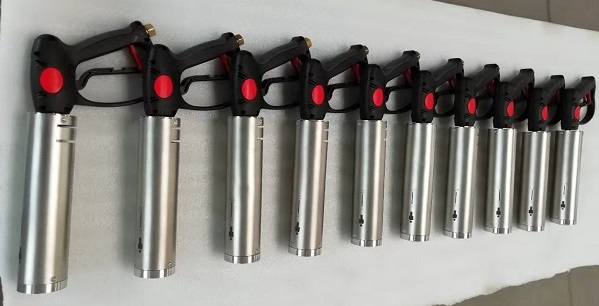

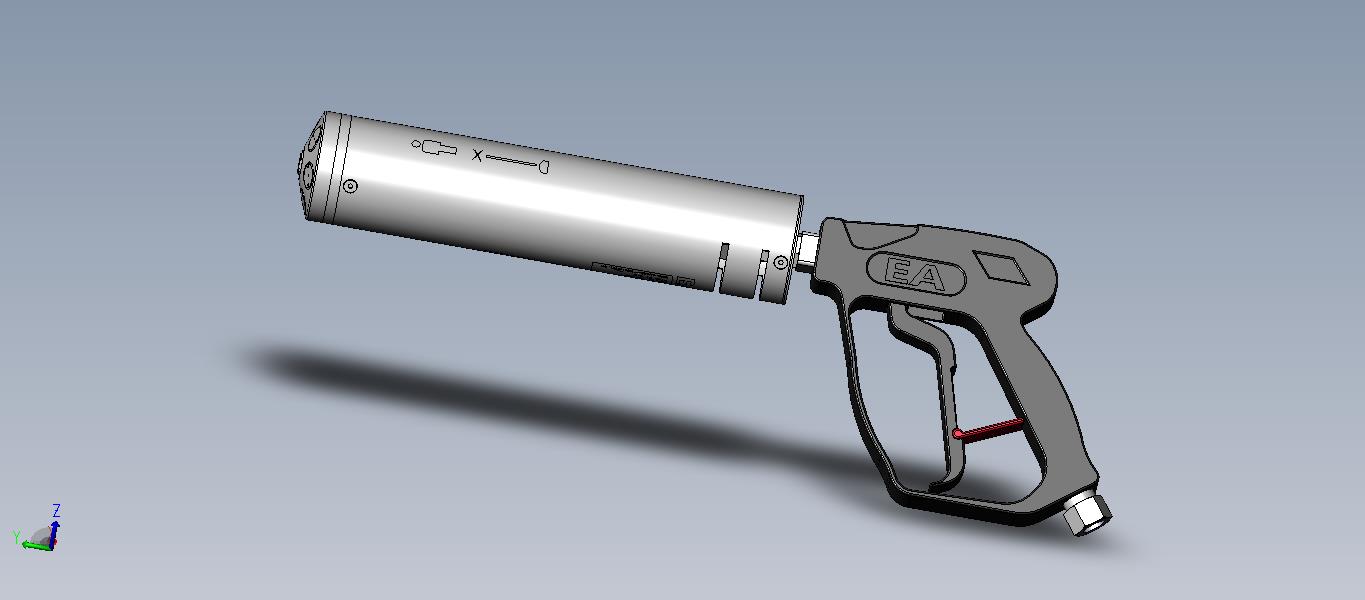

意安高压细水雾喷枪Mist GunJet™
EA Mist GunJet™ HIGH PRESSURE WATER MIST GUN



源自意大利的高压细水雾技术, 意安消防自有核心技术的喷嘴,EA Mist GunJet™喷枪确保更好的雾滴分布,采用微量用水达到迅速的灭火效果
      The EA core nozzle technology ensures that EA Mist GunJet™ have better droplet distribution and uses the micro amount of water to achieve the fast fire suppression

EA Mist GunJet™ 系列高压细水雾喷枪参数表
EA Mist GunJet™ high-pressure water mist gun datasheet


尺    寸:       508x 174mm (长x宽)
Dimensions :  508 x 174mm  (L × W )
重    量 :      2.8 kg
Weight :        2.8 kg
最大工作压力:                200BAR (2900 p.s.i.)
Max working pressure: 200BAR (2900 p.s.i.)
接头形式:          F G3/8’
Connector type:  F G3/8’




喷射模式 Spray model:
高压细水雾 High-pressure water mist
射流水柱 Water jet-flow
喷射距离 Spray distance:

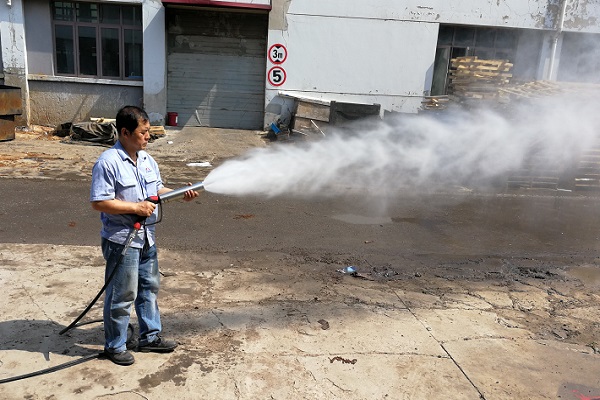

高压细水雾模式 >15m
High-pressure water mist > 15m

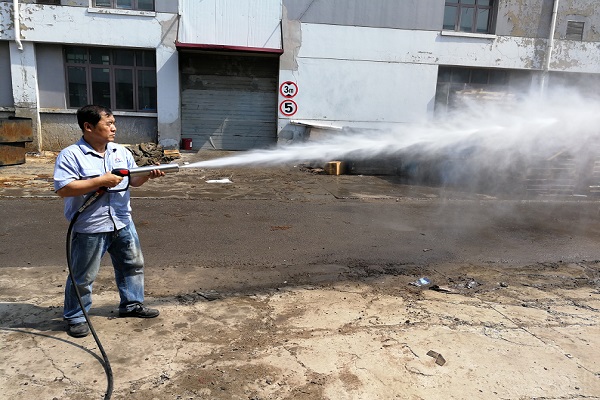

射流水柱模式 >20m

Water jet-flow >20m



EA Mist GunJet™ 流量系数Flow K :

型号EA 150/35  K=3.5
型号EA 150/30  K=3.0
型号EA 150/25  K=2.5


360° 高压旋转接头(可选):防止高压软管打结
360° swivel connector (option):anti high-pressure hose knotted


高压快速接头(可选):实现快速连接
High-pressure quick connector (option):  Quick connection


EA Mist GunJet™ 产品优点
EA Mist GunJet™ Advantage

特殊的喷嘴设计方案,高压喷雾时无反作用力, 轻松操作
Special nozzle design, high pressure spray without reaction force, easy operation
雾滴分布均匀,灭火效率高
The droplet distribution is uniform and the fire extinguishing efficiency is high
特别设计的手柄,能改善对喷枪的控制并减少操作的疲劳
The specially designed handle can improve the control of the spray gun and reduce the fatigue of operation.
不用手动手柄操作可以实现射流和喷雾随时自由切换,实现了快速切换
Free switching of jet and spray at any time without handle valve.  Achieve fast switching speed.
灵敏的扳机,可确保精确且稳定的流量控制
Sensitive trigger ensures accurate and stable flow control.
条纹式的手把,尽可能的避免手打滑和操作意外
Striped handlebars, as far as possible to avoid hand skidding and operational accidents.
防误操作锁止装置
Anti misoperation locking device


配套其它EA产品

Matching other EA products

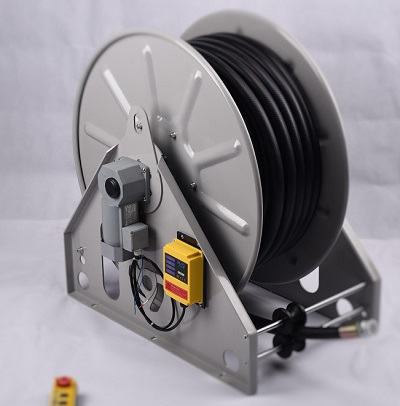

(1) 高压软管及卷盘
High-pressure hose and hose reel

软管爆破压力:40 Mpa (5800 p.s.i.)
Hose blasting pressure: 40Mpa (5800 p.s.i.)
高压软管长度: 40M  (客户定制: 10M-60M)
Length of high-pressure hose: 40M  (Customized: 10M-60M)







(2)高压软管卷盘箱
Cabinet of high-pressure hose reel

箱体尺寸: 500 x 300 x 900mm (长x宽x高 mm)
Dimensions of cabinet :  500 x 300 x 900mm  (L × W × H)
卷盘支架:304不锈钢
Reel Frame: 304 Stainless steel
箱体材料: 钢
Cabinet material: Steel
软管爆破压力:40 Mpa (5800 p.s.i.)
Hose blasting pressure: 40Mpa (5800 p.s.i.)
高压软管长度: 40M  (客户定制: 10M-60M)
Length of high-pressure hose: 40M  (Customized: 10M-60M)



                                  意安消防, 用科技保护你的安全!
                    EA Fire Fighting,  Protect your safety with technology!
